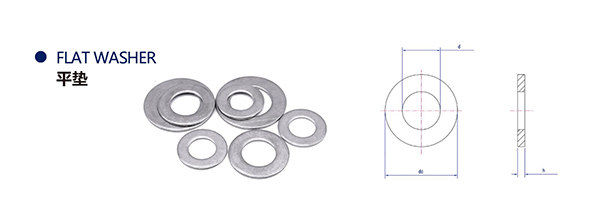

| 平垫 FLAT WASHER |
|||||||||||
| SIZE | Φ6 | Φ7 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 |
| D MIN | 6.4 | 7.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
| D MAX | 6.62 | 7.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 |
| DC MAX | 12 | 14 | 16 | 20 | 24 | 28 | 30 | 34 | 37 | 39 | 44 |
| DE MIN | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | 27.48 | 29.48 | 33.38 | 36.38 | 38.38 | 43.38 |
| H MAX | 1.8 | 1.8 | 1.8 | 2.2 | 2.7 | 2.7 | 3.3 | 3.3 | 3.3 | 3.3 | 4.3 |
| H MIN | 1.4 | 1.4 | 1.4 | 1.8 | 2.3 | 2.3 | 2.7 | 2.7 | 2.7 | 2.7 | 3.7 |
