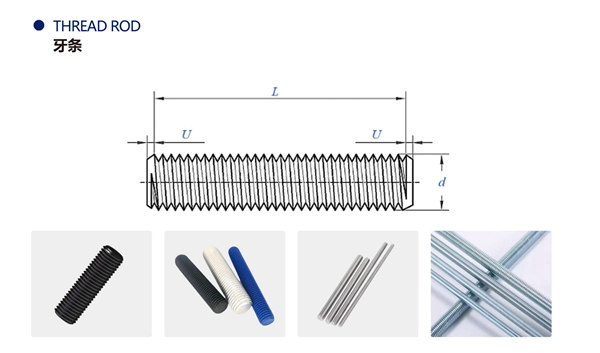

| 牙条 THREAD ROD |
||||||||||||||
| SIZE | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | |
| P | COARSE THREAD | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| FINE THREAD | / | / | 1 | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | |
| FINE THREAD | / | / | 1 | / | 1 | 1 | / | 1 | 1 | 1.5 | 1 | / | 1 | |
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| MPCS WEIGHT | 18.7 | 30 | 44 | 60 | 78 | 124 | 177 | 319 | 500 | 725 | 970 | 1330 | 1650 | |
| SIZE | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | M39 | M42 | (M45) | M48 | (M52) | ||
| P | COARSE THREAD | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| FINE THREAD | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| FINE THREAD | / | / | 1 | / | 1 | / | / | 1 | / | 1 | / | 1 | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| MPCS WEIGHT | 2080 | 2540 | 3000 | 3850 | 4750 | 5900 | 6900 | 8200 | 9400 | 11000 | 12400 | 14700 | ||
